Свойства
Low toxicity in case of fire. Flexible at low temperatures, very good UV-resistance and oil resistance. EN standard approved tube, for the railways, tunnels, ships, public buildings.
Указания
Suitable connection glands: T&B straight, T&B angled, Anamet straight, Anamet angled
Обозначение
HFX
Beschreibung

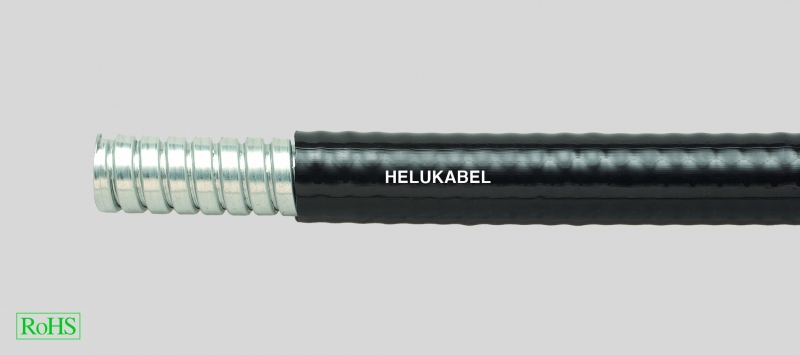

Halogen-free, low smoke generation, UV-resistant, oil-resistant, weather-resistant. Protection tube from reinforced, galvanised steel band with spiral wound, latched profile, a continuous cord seal and extruded plastic sheath. This complex construction method keeps the plastic sheath and the internal tube flush together.
Artikel-Nr. schwarz |
Nennweite Zoll |
Innen-Ø mm |
Außen-Ø mm |
VPE Meter |
94994 |
5/16“ |
10,1 |
14,4 |
30 |
94995 |
3/8“ |
12,6 |
17,8 |
30 |
94996 |
1/2“ |
16,0 |
21,1 |
30 |
94997 |
3/4“ |
21,0 |
26,4 |
30 |
94998 |
1“ |
26,5 |
33,1 |
30 |
94999 |
1 1/4» |
35,1 |
41,8 |
15 |
