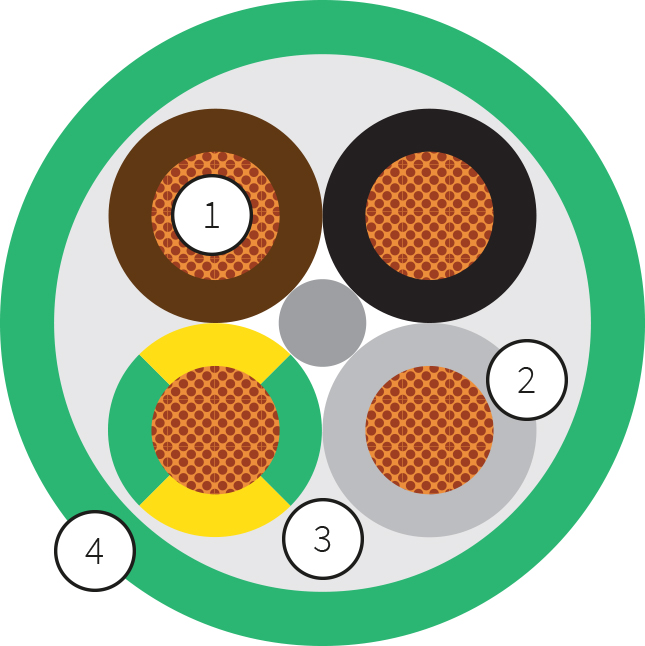

1. PHASE CONDUCTORS
   MATERIAL: bare copper
   CONSTRUCTION: class 5 IEC 60228
2. INSULATION
   MATERIAL: HEPR or equivalent, G7 quality according to EN 50363

   CORES IDENTIFICATION
   According to HD 308
3. FILLER
   MATERIAL: flame retardant compound
4. OUTER SHEATH
   MATERIAL: special LSZH thermoplastic compound, M1 quality according to EN 50363
   COLOUR: black

APPLICATION

The “GISETTE ATOX” cables series are made with special materials which ensure flame – retarding features in case of fire, in compliance with the IEC 332.3 test requirements, as well as releasing no halogens, toxic gases or smoke. That is the reason why they are recommended for use in places at highest risk of fire. Any fire fails to develop smoke or suffocating fumes, thus ensuring a safe and panic-free departure of people from the environments involved.
