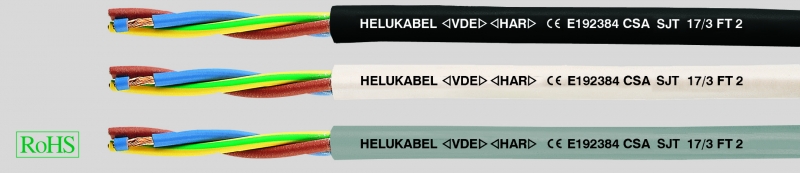

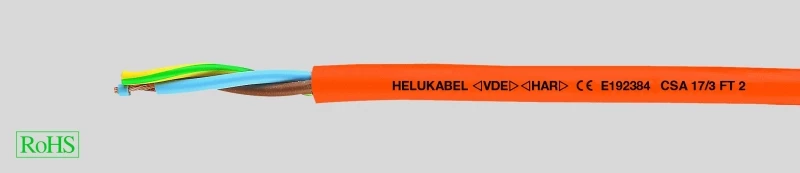

H05VV-F/SJT, 300В 300 В, в соответствии с DIN VDE 0281 и UL-станд. 62
Производитель —
Оценка (средняя 5)
Технические характеристики
PVC control cable to
DIN VDE 0285-525-2-11/
DIN EN 50525-2-11, IEC 60227-5 and
UL-Std.62 and CSA 22.2 No. 49
Temperature range
HAR flexing -5°C to +70°C
HAR fixed installation -40°C to +70°C
UL/CSA flexing -5°C to +60°C
UL/CSA fixed installation -40°C to +60°C
Nominal voltage
HAR...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — H05VV-F/SJT, 300В 300 В, в соответствии с DIN VDE 0281 и UL-станд. 62
-
PVC control cable toDIN VDE 0285-525-2-11/DIN EN 50525-2-11, IEC 60227-5 andUL-Std.62 and CSA 22.2 No. 49
-
Temperature rangeHAR flexing -5°C to +70°CHAR fixed installation -40°C to +70°CUL/CSA flexing -5°C to +60°CUL/CSA fixed installation -40°C to +60°C
-
Nominal voltageHAR U0/U 300/500 VUL/CSA U 300 V
- Test voltage 2500 V, 5 min.
- Breakdown voltage min. 5000 V
- Spark-Test6000 V
-
Insulation resistancemin. 20 MOhm x km
-
Minimum bending radiusapprox. 7,5x cable Ø
-
Radiation resistanceup to 80x106 cJ/kg (up to 80 Mrad)
-
Bare copper-conductor, fine-wirewith AWG dimensions to UL-Std. 62
-
PVC insulation TI2 toDIN VDE 0207-363-3/DIN EN 50363-3and class 43 to UL-Std. 62 (Table 50.182,UL-Std. 1581) acc. toCSA-Std. C 22.2 No 49 Type SJT
-
Core identification acc. to colourcode DIN VDE 0293-308, one coloured
- GN-YE conductor, 3 cores and above
- Core stranded with optimal lay-length
-
PVC outer sheath TM2 toDIN VDE 0207-363-4-1/DIN EN 50363-4-1and class 43 to UL-Std. 62(Table 50.182, UL-Std. 1581) acc. toCSA-Std. C 22.2 No 49 Type SJT
- Sheath colour by request
-
PVC self-extinguishing and flame retardantacc. to DIN VDE 0482-332-1-2,DIN EN 60332-1-2, IEC 60332-1 (equivalentDIN VDE 0472 part 804 test method B), FT2
-
The materials used in manufacture arecadmium-free and contain no siliconeand free from substances harmful tothe wetting properties of lacquers
-
G = with green-yellow conductorx = without green-yellow conductor
-
Colour code:0 = RAL 5015, blue1 = RAL 6018, green2 = RAL 8003, brown3 = RAL 1021, yellow4 = RAL 3000, red5 = RAL 2003, orange6 = RAL 4005, violet7 = gold8 = dusky gold
-
Please add the individual part no. for orderwith the identification colour code.Further colours on request.
These flexible PVC control cables, VDE-HAR-UL-CSA approved, are designed for the export and also for the export-orientated-equipment. These cables are especially suited to use for the appliance with medium mechanical stresses with free movement without tensile stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc., as far as this cable is admitted to the relevant specifications of the equipment. These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences or heat. The cables are suitable for fixed installation in furnitures, partition walls, decoration covering and in hollow spaces of prefabricated building parts. They are not suitable for use in open air, in industries (also permitted to tailor workshops and of that kind) and in agriculture plants and for connecting commercial electrical tools.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
| Art.-Nr. | Aderzahl x Nennquer- schnitt mm² |
Mantel- farbe |
Außen-Ø ca. mm | Cu-Zahl kg / km | Gewicht ca. kg / km | Preis EUR / 100m Cu 150,- |
| 31100 | 2 x 1 | blau | 7,2 | 19,2 | 56,0 | 232,00 |
| 31101 | 2 x 1 | grün | 7,2 | 19,2 | 56,0 | 232,00 |
| 31102 | 2 x 1 | braun | 7,2 | 19,2 | 56,0 | 232,00 |
| 31103 | 2 x 1 | gelb | 7,2 | 19,2 | 56,0 | 232,00 |
| 31104 | 2 x 1 | rot | 7,2 | 19,2 | 56,0 | 232,00 |
| 31105 | 2 x 1 | orange | 7,2 | 19,2 | 56,0 | 232,00 |
| 31106 | 2 x 1 | violett | 7,2 | 19,2 | 56,0 | 232,00 |
| 31107 | 2 x 1 | gold | 7,2 | 19,2 | 56,0 | 232,00 |
| 31108 | 2 x 1 | altgold | 7,2 | 19,2 | 56,0 | 232,00 |
| 31110 | 3 G 1 | blau | 7,6 | 28,8 | 73,0 | 263,00 |
| 31111 | 3 G 1 | grün | 7,6 | 28,8 | 73,0 | 263,00 |
| 31112 | 3 G 1 | braun | 7,6 | 28,8 | 73,0 | 263,00 |
| 31113 | 3 G 1 | gelb | 7,6 | 28,8 | 73,0 | 263,00 |
| 31114 | 3 G 1 | rot | 7,6 | 28,8 | 73,0 | 263,00 |
| 31115 | 3 G 1 | orange | 7,6 | 28,8 | 73,0 | 263,00 |
| 31116 | 3 G 1 | violett | 7,6 | 28,8 | 73,0 | 263,00 |
| 31117 | 3 G 1 | gold | 7,6 | 28,8 | 73,0 | 263,00 |
| 31118 | 3 G 1 | altgold | 7,6 | 28,8 | 73,0 | 263,00 |
| 31120 | 4 G 1 | blau | 8,6 | 38,4 | 86,0 | 317,00 |
| 31121 | 4 G 1 | grün | 8,6 | 38,4 | 86,0 | 317,00 |
| 31122 | 4 G 1 | braun | 8,6 | 38,4 | 86,0 | 317,00 |
| 31123 | 4 G 1 | gelb | 8,6 | 38,4 | 86,0 | 317,00 |
| 31124 | 4 G 1 | rot | 8,6 | 38,4 | 86,0 | 317,00 |
| 31125 | 4 G 1 | orange | 8,6 | 38,4 | 86,0 | 317,00 |
| 31126 | 4 G 1 | violett | 8,6 | 38,4 | 86,0 | 317,00 |
| 31127 | 4 G 1 | gold | 8,6 | 38,4 | 86,0 | 317,00 |
| 31128 | 4 G 1 | altgold | 8,6 | 38,4 | 86,0 | 317,00 |
| 31130 | 5 G 1 | blau | 9,4 | 48,0 | 105,0 | 360,00 |
| 31131 | 5 G 1 | grün | 9,4 | 48,0 | 105,0 | 360,00 |
| 31132 | 5 G 1 | braun | 9,4 | 48,0 | 105,0 | 360,00 |
| 31133 | 5 G 1 | gelb | 9,4 | 48,0 | 105,0 | 360,00 |
| 31134 | 5 G 1 | rot | 9,4 | 48,0 | 105,0 | 360,00 |
| 31135 | 5 G 1 | orange | 9,4 | 48,0 | 105,0 | 360,00 |
| 31136 | 5 G 1 | violett | 9,4 | 48,0 | 105,0 | 360,00 |
| 31137 | 5 G 1 | gold | 9,4 | 48,0 | 105,0 | 360,00 |
| 31138 | 5 G 1 | altgold | 9,4 | 48,0 | 105,0 | 360,00 |
| 31140 | 2 x 1,5 | blau | 7,6 | 28,8 | 82,0 | 247,00 |
| 31141 | 2 x 1,5 | grün | 7,6 | 28,8 | 82,0 | 247,00 |
| 31142 | 2 x 1,5 | braun | 7,6 | 28,8 | 82,0 | 247,00 |
| 31143 | 2 x 1,5 | gelb | 7,6 | 28,8 | 82,0 | 247,00 |
| 31144 | 2 x 1,5 | rot | 7,6 | 28,8 | 82,0 | 247,00 |
| 31145 | 2 x 1,5 | orange | 7,6 | 28,8 | 82,0 | 247,00 |
| 31146 | 2 x 1,5 | violett | 7,6 | 28,8 | 82,0 | 247,00 |
| 31147 | 2 x 1,5 | gold | 7,6 | 28,8 | 82,0 | 247,00 |
| 31148 | 2 x 1,5 | altgold | 7,6 | 28,8 | 82,0 | 247,00 |
| 31150 | 3 G 1,5 | blau | 8,3 | 44,0 | 96,0 | 296,00 |
| 31151 | 3 G 1,5 | grün | 8,3 | 44,0 | 96,0 | 296,00 |
| 31152 | 3 G 1,5 | braun | 8,3 | 44,0 | 96,0 | 296,00 |
| 31153 | 3 G 1,5 | gelb | 8,3 | 44,0 | 96,0 | 296,00 |
| 31154 | 3 G 1,5 | rot | 8,3 | 44,0 | 96,0 | 296,00 |
| 31155 | 3 G 1,5 | orange | 8,3 | 44,0 | 96,0 | 296,00 |
| 31156 | 3 G 1,5 | violett | 8,3 | 44,0 | 96,0 | 296,00 |
| 31157 | 3 G 1,5 | gold | 8,3 | 44,0 | 96,0 | 296,00 |
| 31158 | 3 G 1,5 | altgold | 8,3 | 44,0 | 96,0 | 296,00 |
| 31160 | 4 G 1,5 | blau | 9,3 | 58,0 | 117,0 | 350,00 |
| 31161 | 4 G 1,5 | grün | 9,3 | 58,0 | 117,0 | 350,00 |
| 31162 | 4 G 1,5 | braun | 9,3 | 58,0 | 117,0 | 350,00 |
| 31163 | 4 G 1,5 | gelb | 9,3 | 58,0 | 117,0 | 350,00 |
| 31164 | 4 G 1,5 | rot | 9,3 | 58,0 | 117,0 | 350,00 |
| 31165 | 4 G 1,5 | orange | 9,3 | 58,0 | 117,0 | 350,00 |
| 31166 | 4 G 1,5 | violett | 9,3 | 58,0 | 117,0 | 350,00 |
| 31167 | 4 G 1,5 | gold | 9,3 | 58,0 | 117,0 | 350,00 |
| 31168 | 4 G 1,5 | altgold | 9,3 | 58,0 | 117,0 | 350,00 |
| 31170 | 5 G 1,5 | blau | 10,4 | 72,0 | 144,0 | 408,00 |
| 31171 | 5 G 1,5 | grün | 10,4 | 72,0 | 144,0 | 408,00 |
| 31172 | 5 G 1,5 | braun | 10,4 | 72,0 | 144,0 | 408,00 |
| 31173 | 5 G 1,5 | gelb | 10,4 | 72,0 | 144,0 | 408,00 |
| 31174 | 5 G 1,5 | rot | 10,4 | 72,0 | 144,0 | 408,00 |
| 31175 | 5 G 1,5 | orange | 10,4 | 72,0 | 144,0 | 408,00 |
| 31176 | 5 G 1,5 | violett | 10,4 | 72,0 | 144,0 | 408,00 |
| 31177 | 5 G 1,5 | gold | 10,4 | 72,0 | 144,0 | 408,00 |
| 31178 | 5 G 1,5 | altgold | 10,4 | 72,0 | 144,0 | 408,00 |
| 31180 | 2 x 2,5 | blau | 9,2 | 48,0 | 118,0 | 323,00 |
| 31181 | 2 x 2,5 | grün | 9,2 | 48,0 | 118,0 | 323,00 |
| 31182 | 2 x 2,5 | braun | 9,2 | 48,0 | 118,0 | 323,00 |
| 31183 | 2 x 2,5 | gelb | 9,2 | 48,0 | 118,0 | 323,00 |
| 31184 | 2 x 2,5 | rot | 9,2 | 48,0 | 118,0 | 323,00 |
| 31185 | 2 x 2,5 | orange | 9,2 | 48,0 | 118,0 | 323,00 |
| 31186 | 2 x 2,5 | violett | 9,2 | 48,0 | 118,0 | 323,00 |
| 31187 | 2 x 2,5 | gold | 9,2 | 48,0 | 118,0 | 323,00 |
| 31188 | 2 x 2,5 | altgold | 9,2 | 48,0 | 118,0 | 323,00 |
| 31190 | 3 G 2,5 | blau | 10,0 | 72,0 | 152,0 | 387,00 |
| 31191 | 3 G 2,5 | grün | 10,0 | 72,0 | 152,0 | 387,00 |
| 31192 | 3 G 2,5 | braun | 10,0 | 72,0 | 152,0 | 387,00 |
| 31193 | 3 G 2,5 | gelb | 10,0 | 72,0 | 152,0 | 387,00 |
| 31194 | 3 G 2,5 | rot | 10,0 | 72,0 | 152,0 | 387,00 |
| 31195 | 3 G 2,5 | orange | 10,0 | 72,0 | 152,0 | 387,00 |
| 31196 | 3 G 2,5 | violett | 10,0 | 72,0 | 152,0 | 387,00 |
| 31197 | 3 G 2,5 | gold | 10,0 | 72,0 | 152,0 | 387,00 |
| 31198 | 3 G 2,5 | altgold | 10,0 | 72,0 | 152,0 | 387,00 |
| 31200 | 4 G 2,5 | blau | 10,9 | 96,0 | 192,0 | 462,00 |
| 31201 | 4 G 2,5 | grün | 10,9 | 96,0 | 192,0 | 462,00 |
| 31202 | 4 G 2,5 | braun | 10,9 | 96,0 | 192,0 | 462,00 |
| 31203 | 4 G 2,5 | gelb | 10,9 | 96,0 | 192,0 | 462,00 |
| 31204 | 4 G 2,5 | rot | 10,9 | 96,0 | 192,0 | 462,00 |
| 31205 | 4 G 2,5 | orange | 10,9 | 96,0 | 192,0 | 462,00 |
| 31206 | 4 G 2,5 | violett | 10,9 | 96,0 | 192,0 | 462,00 |
| 31207 | 4 G 2,5 | gold | 10,9 | 96,0 | 192,0 | 462,00 |
| 31208 | 4 G 2,5 | altgold | 10,9 | 96,0 | 192,0 | 462,00 |
| 31210 | 5 G 2,5 | blau | 12,2 | 120,0 | 243,0 | 558,00 |
| 31211 | 5 G 2,5 | grün | 12,2 | 120,0 | 243,0 | 558,00 |
| 31212 | 5 G 2,5 | braun | 12,2 | 120,0 | 243,0 | 558,00 |
| 31213 | 5 G 2,5 | gelb | 12,2 | 120,0 | 243,0 | 558,00 |
| 31214 | 5 G 2,5 | rot | 12,2 | 120,0 | 243,0 | 558,00 |
| 31215 | 5 G 2,5 | orange | 12,2 | 120,0 | 243,0 | 558,00 |
| 31216 | 5 G 2,5 | violett | 12,2 | 120,0 | 243,0 | 558,00 |
| 31217 | 5 G 2,5 | gold | 12,2 | 120,0 | 243,0 | 558,00 |
| 31218 | 5 G 2,5 | altgold | 12,2 | 120,0 | 243,0 | 558,00 |
| 31220 | 2 x 4 | blau | 10,6 | 76,8 | 195,0 | 467,00 |
| 31221 | 2 x 4 | grün | 10,6 | 76,8 | 195,0 | 467,00 |
| 31222 | 2 x 4 | braun | 10,6 | 76,8 | 195,0 | 467,00 |
| 31223 | 2 x 4 | gelb | 10,6 | 76,8 | 195,0 | 467,00 |
| 31224 | 2 x 4 | rot | 10,6 | 76,8 | 195,0 | 467,00 |
| 31225 | 2 x 4 | orange | 10,6 | 76,8 | 195,0 | 467,00 |
| 31226 | 2 x 4 | violett | 10,6 | 76,8 | 195,0 | 467,00 |
| 31227 | 2 x 4 | gold | 10,6 | 76,8 | 195,0 | 467,00 |
| 31228 | 2 x 4 | altgold | 10,6 | 76,8 | 195,0 | 467,00 |
| 31230 | 3 G 4 | blau | 11,5 | 115,0 | 235,0 | 569,00 |
| 31231 | 3 G 4 | grün | 11,5 | 115,0 | 235,0 | 569,00 |
| 31232 | 3 G 4 | braun | 11,5 | 115,0 | 235,0 | 569,00 |
| 31233 | 3 G 4 | gelb | 11,5 | 115,0 | 235,0 | 569,00 |
| 31234 | 3 G 4 | rot | 11,5 | 115,0 | 235,0 | 569,00 |
| 31235 | 3 G 4 | orange | 11,5 | 115,0 | 235,0 | 569,00 |
| 31236 | 3 G 4 | violett | 11,5 | 115,0 | 235,0 | 569,00 |
| 31237 | 3 G 4 | gold | 11,5 | 115,0 | 235,0 | 569,00 |
| 31238 | 3 G 4 | altgold | 11,5 | 115,0 | 235,0 | 569,00 |
| 31240 | 4 G 4 | blau | 12,4 | 154,0 | 300,0 | 687,00 |
| 31241 | 4 G 4 | grün | 12,4 | 154,0 | 300,0 | 687,00 |
| 31242 | 4 G 4 | braun | 12,4 | 154,0 | 300,0 | 687,00 |
| 31243 | 4 G 4 | gelb | 12,4 | 154,0 | 300,0 | 687,00 |
| 31244 | 4 G 4 | rot | 12,4 | 154,0 | 300,0 | 687,00 |
| 31245 | 4 G 4 | orange | 12,4 | 154,0 | 300,0 | 687,00 |
| 31246 | 4 G 4 | violett | 12,4 | 154,0 | 300,0 | 687,00 |
| 31247 | 4 G 4 | gold | 12,4 | 154,0 | 300,0 | 687,00 |
| 31248 | 4 G 4 | altgold | 12,4 | 154,0 | 300,0 | 687,00 |
| 31250 | 5 G 4 | blau | 14,1 | 192,0 | 361,0 | 816,00 |
| 31251 | 5 G 4 | grün | 14,1 | 192,0 | 361,0 | 816,00 |
| 31252 | 5 G 4 | braun | 14,1 | 192,0 | 361,0 | 816,00 |
| 31253 | 5 G 4 | gelb | 14,1 | 192,0 | 361,0 | 816,00 |
| 31254 | 5 G 4 | rot | 14,1 | 192,0 | 361,0 | 816,00 |
| 31255 | 5 G 4 | orange | 14,1 | 192,0 | 361,0 | 816,00 |
| 31256 | 5 G 4 | violett | 14,1 | 192,0 | 361,0 | 816,00 |
| 31257 | 5 G 4 | gold | 14,1 | 192,0 | 361,0 | 816,00 |
| 31258 | 5 G 4 | altgold | 14,1 | 192,0 | 361,0 | 816,00 |
