K2 gerade - Kupfer unisoliert, Ringform
Производитель —
Оценка (средняя 4)
Свойства
Without inspection hole
Указания
Also available in angulated version (45 ° and 90°).
Обозначение

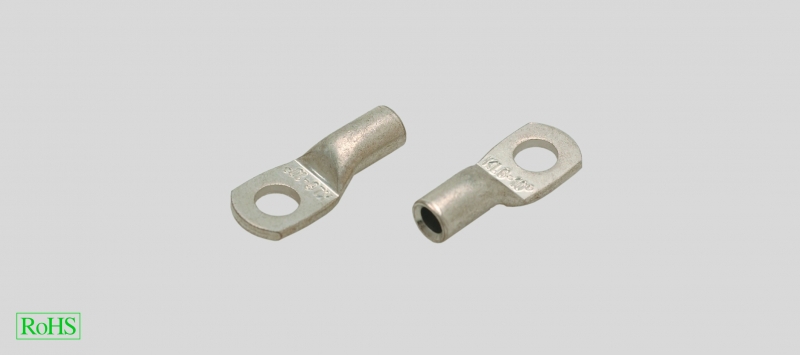

Tubular cable lug K2
Beschreibung
Non-insulated tubular cable lugs in eye type design. High definition version for reliable crimping.
Artikel-Nr.
Typ
Querschnitt mm²
a mm
d mm
b mm
l mm
Kennzahl Typ
Gewicht kg / 1000 Stück...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — K2 gerade - Kupfer unisoliert, Ringform
- Without inspection hole
Also available in angulated version (45° and 90°).
Tubular cable lug K2
Non-insulated tubular cable lugs in eye type design. High definition version for reliable crimping.
| Artikel-Nr. | Typ | Querschnitt mm² | a mm | d mm | b mm | l mm | Kennzahl Typ |
Gewicht kg / 1000 Stück | VPE Stück |
| 904517 | K2 6-5 | 6,0 | 5,5 | 3,5 | 10,0 | 21,0 | - | 5,0 | 100 |
| 904518 | K2 6-6 | 6,0 | 6,5 | 3,5 | 12,0 | 21,0 | - | 4,7 | 100 |
| 904519 | K2 6-8 | 6,0 | 8,5 | 3,5 | 15,0 | 23,0 | - | 5,4 | 100 |
| 904520 | K2 6-10 | 6,0 | 10,5 | 3,5 | 17,0 | 25,0 | - | 5,9 | 100 |
| 904521 | K2 6-12 | 6,0 | 13,0 | 3,5 | 19,0 | 28,0 | - | 6,3 | 100 |
| 904522 | K2 10-5 | 10,0 | 5,5 | 4,5 | 12,0 | 22,0 | - | 5,0 | 100 |
| 904523 | K2 10-6 | 10,0 | 6,5 | 4,5 | 12,0 | 22,0 | - | 4,9 | 100 |
| 904524 | K2 10-8 | 10,0 | 8,5 | 4,5 | 15,0 | 25,0 | - | 5,8 | 100 |
| 904525 | K2 10-10 | 10,0 | 10,5 | 4,5 | 17,0 | 27,0 | - | 6,2 | 100 |
| 904526 | K2 10-12 | 10,0 | 13,0 | 4,5 | 19,0 | 29,0 | - | 6,4 | 100 |
| 904527 | K2 16-5 | 16,0 | 5,5 | 5,5 | 12,0 | 26,0 | - | 8,4 | 100 |
| 904528 | K2 16-6 | 16,0 | 6,5 | 5,5 | 12,0 | 27,0 | - | 8,6 | 100 |
| 904529 | K2 16-8 | 16,0 | 8,5 | 5,5 | 15,0 | 29,0 | - | 9,3 | 100 |
| 904530 | K2 16-10 | 16,0 | 10,5 | 5,5 | 17,0 | 31,0 | - | 9,9 | 100 |
| 904531 | K2 16-12 | 16,0 | 13,0 | 5,5 | 19,0 | 33,0 | - | 10,2 | 100 |
| 904532 | K2 25-5 | 25,0 | 5,5 | 7,0 | 14,0 | 30,0 | - | 12,2 | 25 |
| 904533 | K2 25-6 | 25,0 | 6,5 | 7,0 | 14,0 | 30,0 | - | 12,0 | 100 |
| 904534 | K2 25-8 | 25,0 | 8,5 | 7,0 | 16,0 | 32,0 | - | 13,1 | 100 |
| 904535 | K2 25-10 | 25,0 | 10,5 | 7,0 | 18,0 | 34,0 | - | 15,7 | 100 |
| 904536 | K2 25-12 | 25,0 | 13,0 | 7,0 | 19,0 | 35,0 | - | 13,9 | 25 |
| 904537 | K2 25-14 | 25,0 | 15,0 | 7,0 | 21,0 | 38,0 | - | 14,9 | 25 |
| 904538 | K2 35-6 | 35,0 | 6,5 | 8,5 | 17,0 | 32,0 | - | 18,5 | 100 |
| 904539 | K2 35-8 | 35,0 | 8,5 | 8,5 | 17,0 | 34,0 | - | 20,0 | 100 |
| 904540 | K2 35-10 | 35,0 | 10,5 | 8,5 | 19,0 | 37,0 | - | 21,3 | 100 |
| 904541 | K2 35-12 | 35,0 | 13,0 | 8,5 | 21,0 | 38,0 | - | 21,2 | 100 |
| 904542 | K2 35-14 | 35,0 | 15,0 | 8,5 | 21,0 | 40,0 | - | 21,8 | 25 |
| 904543 | K2 35-16 | 35,0 | 17,0 | 8,5 | 26,0 | 42,0 | - | 22,4 | 25 |
| 904544 | K2 50-6 | 50,0 | 6,5 | 10,0 | 20,0 | 37,0 | - | 30,0 | 25 |
| 904545 | K2 50-8 | 50,0 | 8,5 | 10,0 | 20,0 | 37,0 | - | 29,3 | 50 |
| 904546 | K2 50-10 | 50,0 | 10,5 | 10,0 | 20,0 | 39,0 | - | 30,8 | 50 |
| 904547 | K2 50-12 | 50,0 | 13,0 | 10,0 | 23,0 | 43,0 | - | 32,3 | 50 |
| 904548 | K2 50-14 | 50,0 | 15,0 | 10,0 | 23,0 | 45,0 | - | 33,2 | 25 |
| 904549 | K2 50-16 | 50,0 | 17,0 | 10,0 | 28,0 | 46,0 | - | 33,8 | 25 |
| 904550 | K2 50-20 | 50,0 | 21,0 | 10,0 | 30,0 | 48,0 | - | 34,6 | 25 |
| 904551 | K2 70-6 | 70,0 | 6,5 | 12,0 | 23,0 | 43,0 | - | 44,9 | 25 |
| 904552 | K2 70-8 | 70,0 | 8,5 | 12,0 | 23,0 | 43,0 | - | 43,8 | 50 |
| 904553 | K2 70-10 | 70,0 | 10,5 | 12,0 | 23,0 | 44,0 | - | 45,4 | 50 |
| 904554 | K2 70-12 | 70,0 | 13,0 | 12,0 | 23,0 | 46,0 | - | 46,3 | 50 |
| 904555 | K2 70-14 | 70,0 | 15,0 | 12,0 | 23,0 | 48,0 | - | 47,6 | 25 |
| 904556 | K2 70-16 | 70,0 | 17,0 | 12,0 | 28,0 | 50,0 | - | 42,4 | 25 |
| 904557 | K2 70-20 | 70,0 | 21,0 | 12,0 | 30,0 | 53,0 | - | 50,9 | 25 |
| 904558 | K2 95-8 | 95,0 | 8,5 | 13,5 | 26,0 | 48,0 | - | 54,4 | 25 |
| 904559 | K2 95-10 | 95,0 | 10,5 | 13,5 | 26,0 | 48,0 | - | 54,0 | 50 |
| 904560 | K2 95-12 | 95,0 | 13,0 | 13,5 | 26,0 | 49,0 | - | 55,6 | 50 |
| 904561 | K2 95-14 | 95,0 | 15,0 | 13,5 | 26,0 | 51,0 | - | 56,2 | 25 |
| 904562 | K2 95-16 | 95,0 | 17,0 | 13,5 | 28,0 | 54,0 | - | 58,2 | 50 |
| 904563 | K2 95-20 | 95,0 | 21,0 | 13,5 | 36,0 | 60,0 | - | 67,1 | 25 |
| 904564 | K2 120-8 | 120,0 | 8,5 | 15,0 | 28,0 | 51,0 | - | 67,2 | 25 |
| 904565 | K2 120-10 | 120,0 | 10,5 | 15,0 | 28,0 | 51,0 | - | 65,7 | 50 |
| 904566 | K2 120-12 | 120,0 | 13,0 | 15,0 | 28,0 | 51,0 | - | 63,8 | 50 |
| 904567 | K2 120-14 | 120,0 | 15,0 | 15,0 | 28,0 | 52,0 | - | 64,5 | 25 |
| 904568 | K2 120-16 | 120,0 | 17,0 | 15,0 | 30,0 | 54,0 | - | 65,1 | 50 |
| 904569 | K2 120-20 | 120,0 | 21,0 | 15,0 | 36,0 | 63,0 | - | 77,4 | 25 |
| 904570 | K2 150-8 | 150,0 | 8,5 | 16,5 | 31,0 | 56,0 | - | 77,8 | 10 |
| 904571 | K2 150-10 | 150,0 | 10,5 | 16,5 | 31,0 | 56,0 | - | 76,2 | 10 |
| 904572 | K2 150-12 | 150,0 | 13,0 | 16,5 | 31,0 | 57,0 | - | 77,3 | 25 |
| 904573 | K2 150-14 | 150,0 | 15,0 | 16,5 | 31,0 | 57,0 | - | 76,4 | 10 |
| 904574 | K2 150-16 | 150,0 | 17,0 | 16,5 | 31,0 | 58,0 | - | 75,3 | 10 |
| 904575 | K2 150-20 | 150,0 | 21,0 | 16,5 | 36,0 | 66,0 | - | 88,0 | 10 |
| 904576 | K2 185-10 | 185,0 | 10,5 | 19,0 | 35,0 | 65,0 | - | 117,5 | 10 |
| 904577 | K2 185-12 | 185,0 | 13,0 | 19,0 | 35,0 | 65,0 | - | 118,2 | 10 |
| 904578 | K2 185-14 | 185,0 | 15,0 | 19,0 | 35,0 | 65,0 | - | 113,9 | 10 |
| 904579 | K2 185-16 | 185,0 | 17,0 | 19,0 | 35,0 | 65,0 | - | 112,4 | 25 |
| 904580 | K2 185-20 | 185,0 | 21,0 | 19,0 | 39,0 | 69,0 | - | 120,0 | 10 |
| 904581 | K2 240-10 | 240,0 | 10,5 | 21,0 | 39,0 | 72,0 | - | 147,2 | 10 |
| 904582 | K2 240-12 | 240,0 | 13,0 | 21,0 | 39,0 | 72,0 | - | 145,5 | 10 |
| 904583 | K2 240-14 | 240,0 | 15,0 | 21,0 | 39,0 | 72,0 | - | 142,4 | 10 |
| 904584 | K2 240-16 | 240,0 | 17,0 | 21,0 | 39,0 | 72,0 | - | 140,9 | 25 |
| 904585 | K2 240-20 | 240,0 | 21,0 | 21,0 | 39,0 | 72,0 | - | 136,0 | 10 |
| 904586 | K2 300-12 | 300,0 | 13,0 | 23,5 | 43,0 | 87,0 | - | 233,3 | 5 |
| 904587 | K2 300-14 | 300,0 | 15,0 | 23,5 | 43,0 | 87,0 | - | 231,4 | 5 |
| 904588 | K2 300-16 | 300,0 | 17,0 | 23,5 | 43,0 | 87,0 | - | 227,4 | 5 |
| 904589 | K2 300-20 | 300,0 | 21,0 | 23,5 | 43,0 | 87,0 | - | 221,9 | 5 |
| 904590 | K2 400-12 | 400,0 | 13,0 | 27,0 | 49,0 | 90,0 | - | 324,1 | 5 |
| 904591 | K2 400-14 | 400,0 | 15,0 | 27,0 | 49,0 | 90,0 | - | 322,4 | 5 |
| 904592 | K2 400-16 | 400,0 | 17,0 | 27,0 | 49,0 | 90,0 | - | 319,8 | 5 |
| 904593 | K2 400-20 | 400,0 | 21,0 | 27,0 | 49,0 | 90,0 | - | 314,1 | 5 |
