OPC3077_904594
Производитель —
Оценка (средняя 3)
Свойства
without inspection hole
Обозначение

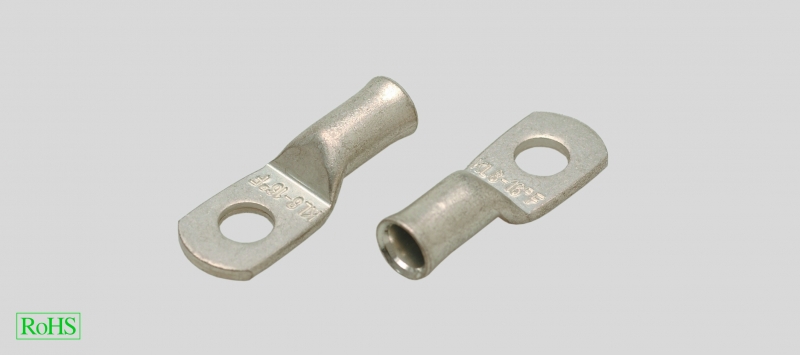

Tubular cable lug KF
Beschreibung
Non-insulated, straight tubular cable lugs in eye type design. High definition version for reliable crimping of fine stranded wires. The expanded sleeve facilitates cable inlet.
Artikel-Nr.
Typ
Querschnitt mm²
a mm
d mm
b mm
l mm
Kennzahl Typ
Gewicht kg / 1000 Stück
VPE...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — OPC3077_904594
- without inspection hole
Tubular cable lug KF
Non-insulated, straight tubular cable lugs in eye type design. High definition version for reliable crimping of fine stranded wires. The expanded sleeve facilitates cable inlet.
| Artikel-Nr. | Typ | Querschnitt mm² | a mm | d mm | b mm | l mm | Kennzahl Typ |
Gewicht kg / 1000 Stück | VPE Stück |
| 904594 | KF10-5 | 10,0 | 5,3 | 5,5 | 12,0 | 27,0 | - | 7,2 | 100 |
| 904595 | KF10-6 | 10,0 | 6,5 | 5,5 | 12,0 | 27,0 | - | 7,1 | 100 |
| 904596 | KF10-8 | 10,0 | 8,5 | 5,5 | 16,0 | 29,0 | - | 7,7 | 100 |
| 904597 | KF10-10 | 10,0 | 10,5 | 5,5 | 16,0 | 31,0 | - | 8,2 | 100 |
| 904598 | KF10-12 | 10,0 | 13,0 | 5,5 | 19,0 | 32,0 | - | 8,2 | 100 |
| 904599 | KF16-5 | 16,0 | 5,3 | 6,6 | 13,0 | 30,0 | - | 11,0 | 100 |
| 904600 | KF16-6 | 16,0 | 6,5 | 6,6 | 13,0 | 30,0 | - | 10,7 | 100 |
| 904601 | KF16-8 | 16,0 | 8,5 | 6,6 | 16,0 | 32,0 | - | 12,1 | 100 |
| 904602 | KF16-10 | 16,0 | 10,5 | 6,6 | 17,0 | 34,0 | - | 12,8 | 100 |
| 904603 | KF16-12 | 16,0 | 13,0 | 6,6 | 19,0 | 35,0 | - | 12,8 | 100 |
| 904604 | KF25-5 | 25,0 | 5,3 | 7,9 | 15,0 | 32,0 | - | 15,2 | 25 |
| 904605 | KF25-6 | 25,0 | 6,5 | 7,9 | 15,0 | 32,0 | - | 15,0 | 100 |
| 904606 | KF25-8 | 25,0 | 8,5 | 7,9 | 17,0 | 34,0 | - | 16,1 | 100 |
| 904607 | KF25-10 | 25,0 | 10,5 | 7,9 | 17,0 | 37,0 | - | 17,1 | 100 |
| 904608 | KF25-12 | 25,0 | 13,0 | 7,9 | 19,0 | 38,0 | - | 17,4 | 25 |
| 904609 | KF35-6 | 35,0 | 6,5 | 9,2 | 17,0 | 35,0 | - | 19,1 | 100 |
| 904610 | KF35-8 | 35,0 | 8,5 | 9,2 | 18,0 | 37,0 | - | 20,8 | 100 |
| 904611 | KF35-10 | 35,0 | 10,5 | 9,2 | 18,0 | 40,0 | - | 22,4 | 100 |
| 904612 | KF35-12 | 35,0 | 13,0 | 9,2 | 19,0 | 41,0 | - | 22,2 | 25 |
| 904613 | KF35-14 | 35,0 | 15,0 | 9,2 | 21,0 | 43,0 | - | 24,1 | 25 |
| 904614 | KF50-6 | 50,0 | 6,5 | 11,0 | 21,0 | 41,0 | - | 35,4 | 25 |
| 904615 | KF50-8 | 50,0 | 8,5 | 11,0 | 21,0 | 41,0 | - | 34,4 | 50 |
| 904616 | KF50-10 | 50,0 | 10,5 | 11,0 | 21,0 | 43,0 | - | 36,4 | 50 |
| 904617 | KF50-12 | 50,0 | 13,0 | 11,0 | 21,0 | 46,0 | - | 37,3 | 50 |
| 904618 | KF50-14 | 50,0 | 15,0 | 11,0 | 23,0 | 48,0 | - | 38,9 | 25 |
| 904619 | KF50-16 | 50,0 | 17,0 | 11,0 | 28,0 | 50,0 | - | 40,2 | 25 |
| 904620 | KF70-8 | 70,0 | 8,5 | 13,0 | 25,0 | 46,0 | - | 44,6 | 50 |
| 904621 | KF70-10 | 70,0 | 10,5 | 13,0 | 25,0 | 48,0 | - | 46,2 | 50 |
| 904622 | KF70-12 | 70,0 | 13,0 | 13,0 | 25,0 | 50,0 | - | 47,1 | 50 |
| 904623 | KF70-14 | 70,0 | 15,0 | 13,0 | 25,0 | 52,0 | - | 48,7 | 25 |
| 904624 | KF70-16 | 70,0 | 17,0 | 13,0 | 25,0 | 54,0 | - | 58,5 | 25 |
| 904625 | KF95-8 | 95,0 | 8,5 | 14,5 | 28,0 | 52,0 | - | 63,5 | 25 |
| 904626 | KF95-10 | 95,0 | 10,5 | 14,5 | 28,0 | 52,0 | - | 62,3 | 50 |
| 904627 | KF95-12 | 95,0 | 13,0 | 14,5 | 28,0 | 53,0 | - | 63,1 | 50 |
| 904628 | KF95-14 | 95,0 | 15,0 | 14,5 | 28,0 | 55,0 | - | 64,6 | 25 |
| 904629 | KF95-16 | 95,0 | 17,0 | 14,5 | 28,0 | 56,0 | - | 65,6 | 50 |
| 904630 | KF120-10 | 120,0 | 10,5 | 16,2 | 30,0 | 57,0 | - | 83,1 | 50 |
| 904631 | KF120-12 | 120,0 | 13,0 | 16,2 | 30,0 | 58,0 | - | 83,9 | 50 |
| 904632 | KF120-14 | 120,0 | 15,0 | 16,2 | 30,0 | 58,0 | - | 80,6 | 25 |
| 904633 | KF120-16 | 120,0 | 17,0 | 16,2 | 30,0 | 59,0 | - | 81,7 | 50 |
| 904634 | KF120-20 | 120,0 | 21,0 | 16,2 | 36,0 | 66,0 | - | 95,6 | 25 |
| 904635 | KF150-10 | 150,0 | 10,5 | 18,0 | 34,0 | 64,0 | - | 109,1 | 10 |
| 904636 | KF150-12 | 150,0 | 13,0 | 18,0 | 34,0 | 65,0 | - | 108,9 | 25 |
| 904637 | KF150-14 | 150,0 | 15,0 | 18,0 | 34,0 | 67,0 | - | 114,2 | 10 |
| 904638 | KF150-16 | 150,0 | 17,0 | 18,0 | 34,0 | 68,0 | - | 113,0 | 10 |
| 904639 | KF150-20 | 150,0 | 21,0 | 18,0 | 40,0 | 70,0 | - | 113,6 | 10 |
| 904640 | KF185-12 | 185,0 | 13,0 | 20,6 | 39,0 | 72,0 | - | 154,0 | 10 |
| 904641 | KF185-14 | 185,0 | 15,0 | 20,6 | 39,0 | 72,0 | - | 152,0 | 10 |
| 904642 | KF185-16 | 185,0 | 17,0 | 20,6 | 39,0 | 72,0 | - | 150,0 | 25 |
| 904643 | KF185-20 | 185,0 | 21,0 | 20,6 | 39,0 | 72,0 | - | 142,0 | 10 |
| 904644 | KF240-12 | 240,0 | 13,0 | 23,1 | 41,0 | 80,0 | - | 163,0 | 10 |
| 904645 | KF240-14 | 240,0 | 15,0 | 23,1 | 41,0 | 83,0 | - | 168,0 | 10 |
| 904646 | KF240-16 | 240,0 | 17,0 | 23,1 | 41,0 | 83,0 | - | 167,1 | 25 |
| 904647 | KF240-20 | 240,0 | 21,0 | 23,1 | 41,0 | 85,0 | - | 171,2 | 10 |
| 904648 | KF300-12 | 300,0 | 13,0 | 26,1 | 47,0 | 96,0 | - | 256,0 | 5 |
| 904649 | KF300-14 | 300,0 | 15,0 | 26,1 | 47,0 | 96,0 | - | 265,6 | 5 |
| 904650 | KF300-16 | 300,0 | 17,0 | 26,1 | 47,0 | 96,0 | - | 256,0 | 5 |
| 904651 | KF300-20 | 300,0 | 21,0 | 26,1 | 47,0 | 96,0 | - | 262,4 | 5 |
