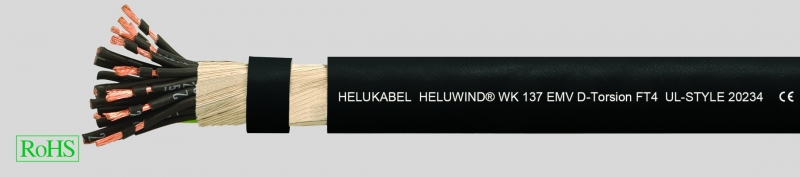

HELUWIND® WK 137 EMV D, стойкий к сручиванию и УФ-лучам, экранированный, безгалогеновый, для шельфовой зоны, 0,6/1 кВ, UL/CSA, одно- и многожильный, -40°C +90°C (+80°C в соот. С UL)
SOL_706503
Производитель —
Оценка (средняя 4)
Технические характеристики
Temperature range
flexing -40°C to +90°C
fixed installation -40°C to +90°C
acc. UL to +80°C
Operating temperature at conductor
max. +90°C
Nominal voltage
acc. to VDE U0/U 0,6/1 kV
acc. to UL 1000 V
Test voltage 50 Hz
core/core 4000 V
Minimum bending radius
8 x cable Ø
(4 ...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — SOL_706503
-
Temperature rangeflexing -40°C to +90°Cfixed installation -40°C to +90°Cacc. UL to +80°C
-
Operating temperature at conductormax. +90°C
-
Nominal voltageacc. to VDE U0/U 0,6/1 kVacc. to UL 1000 V
-
Test voltage 50 Hzcore/core 4000 V
-
Minimum bending radius8 x cable Ø(4 x for fixed installation)
-
Torsion application+/-150° per 1m
-
ApprovalsSinglecore UL-Style 10553Multicore UL-Style 20234cRUus
-
Flame testFT 4IEC 60332-3-24UL 758, Cable flame test
-
Halogen freeIEC 60754-1
-
Smoke densityIEC 61034-1+2
-
Oilacc. to oil res II
- WTTCin preparation
- Special bare copper conductors, fine stranded acc. to IEC 60228
- Insulation special compound
- Core identification black
- EMV-shielded types have tinned copper wrapping
- Sheath special compound SSH
- Black sheath
- halogen-free
- extremely abrasion-resistant
- low adhesion
- high flame retardant
- torsion testet
- suitable for Offshore
- extremely oil resistant
- UV-resistant
- multi climate operation
- designed for CCV application
- easy to assemble
Other diameters, part-no. and prices on request.
Please contact us with your individual requirements via
fax +49 7150 9209 5135.
Highest permissible Voltage
• DC:
Conductor/Conductor 1,8 kV
Conductor/Earth 0,9 kV
• AC: Conductor/Earth 0,7 kV
• Three phase: Conductor/Conductor 1,2 kV
The WK 137 EMC was designed for flexible use, especially to accommodate the torsional stress in the cable loop of a wind turbine. The cable is designed for a voltage level for 0. 6/1 kV for all dimensions, whereby individual cables can also be routed in parallel for standard conformity according to UL. A spatial separation of the cable routes is no longer necessary. This cable also satisfies the high requirements of the CSA FT4 flame test and is ideally suited for use in offshore wind turbines thanks to its extremely resistant sheath and the absence of halogen. The WK series was successfully tested with over 18,000 torsion cycles and thus offers optimal functional safety well beyond the service life of the wind turbine. Advantages of WK 137-T over H07BN4-F: Burning behavior to IEC 60332-3-24 and FT4 increased wear-resistance.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
| Art.-Nr. | Aderzahl x Nennquer- schnitt mm² |
AWG-Nr. | Außen-Ø ca. mm | Cu-Zahl kg / km | Gewicht ca. kg / km |
| 706503 | 1 x 70 | 2/0 | 19,6 | 741,1 | 994,0 |
| 706504 | 1 x 95 | 3/0 | 22,3 | 993,0 | 1305,0 |
| 706505 | 1 x 120 | 4/0 | 24,7 | 1241,6 | 1603,0 |
| 706506 | 1 x 150 | 300 kcmil | 25,3 | 1548,0 | 1970,0 |
| 706507 | 1 x 185 | 350 kcmil | 29,8 | 1900,2 | 2415,0 |
| 706508 | 1 x 240 | 500 kcmil | 32,7 | 2444,4 | 3030,0 |
| 706509 | 1 x 300 | 600 kcmil | 34,0 | 3300,0 | 4310,0 |
