T gerade mit Sichtloch für Normalleiter - Kupfer unlisoliert, Ringform
Производитель —
Оценка (средняя 5)
Обозначение

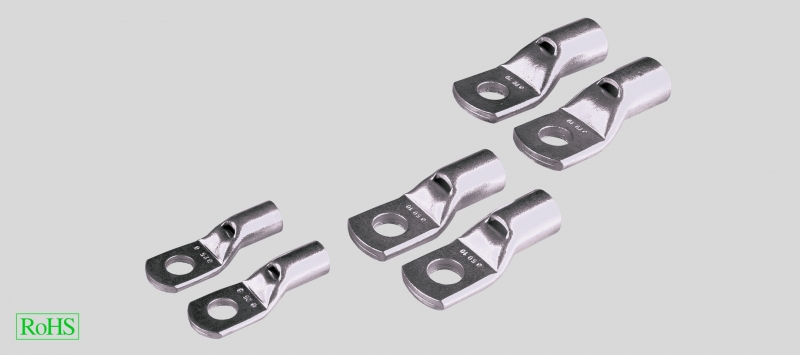

Tubular cable lugs T
Beschreibung
Non-insulated tubular cable lugs in eye type design.
Artikel-Nr.
Typ
Querschnitt mm²
a mm
d mm
b mm
l mm
Kennzahl Typ
Gewicht kg / 1000 Stück
VPE Stück
91458
T 1,5-4
1,5
4,3
2,3
8,0
15,2
-
1,6
100
91459
T 1,5-5
1,5
5,3
2,3
8,0
15,2
-
1,7
100
91460
T...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — T gerade mit Sichtloch für Normalleiter - Kupfer unlisoliert, Ringform
Tubular cable lugs T
Non-insulated tubular cable lugs in eye type design.
| Artikel-Nr. | Typ | Querschnitt mm² | a mm | d mm | b mm | l mm | Kennzahl Typ |
Gewicht kg / 1000 Stück | VPE Stück |
| 91458 | T 1,5-4 | 1,5 | 4,3 | 2,3 | 8,0 | 15,2 | - | 1,6 | 100 |
| 91459 | T 1,5-5 | 1,5 | 5,3 | 2,3 | 8,0 | 15,2 | - | 1,7 | 100 |
| 91460 | T 2,5-4 | 2,5 | 4,3 | 2,6 | 6,9 | 15,2 | - | 1,1 | 100 |
| 91461 | T 2,5-5 | 2,5 | 5,3 | 2,6 | 7,6 | 15,2 | - | 1,1 | 100 |
| 91462 | T 2,5-6 | 2,5 | 6,4 | 2,6 | 9,1 | 16,7 | - | 1,4 | 100 |
| 91463 | T 4-4 | 4,0 | 4,3 | 3,3 | 8,0 | 19,4 | - | 2,5 | 50 |
| 91464 | T 4-5 | 4,0 | 5,3 | 3,3 | 10,0 | 19,9 | - | 2,7 | 50 |
| 91465 | T 4-6 | 4,0 | 6,4 | 3,3 | 11,0 | 20,9 | - | 2,8 | 50 |
| 91467 | T 6-5 | 6,0 | 5,3 | 3,5 | 10,0 | 20,5 | - | 5,5 | 100 |
| 91468 | T 6-6 | 6,0 | 6,4 | 3,5 | 12,0 | 20,5 | - | 5,4 | 100 |
| 91469 | T 10-6 | 10,0 | 6,4 | 4,5 | 12,0 | 22,5 | - | 5,3 | 100 |
| 91470 | T 10-8 | 10,0 | 8,4 | 4,5 | 15,0 | 25,0 | - | 6,4 | 100 |
| 91471 | T 10-10 | 10,0 | 10,5 | 4,5 | 17,0 | 27,0 | - | 7,0 | 100 |
| 91472 | T 16-6 | 16,0 | 6,4 | 5,5 | 12,0 | 27,0 | - | 9,2 | 100 |
| 91473 | T 16-8 | 16,0 | 8,4 | 5,5 | 15,0 | 29,0 | - | 10,1 | 100 |
| 91474 | T 16-10 | 16,0 | 10,5 | 5,5 | 17,0 | 31,0 | - | 10,9 | 100 |
| 91561 | T 25-6 | 25,0 | 6,4 | 7,0 | 14,0 | 30,0 | - | 12,7 | 100 |
| 91562 | T 25-8 | 25,0 | 8,4 | 7,0 | 16,0 | 32,5 | - | 15,9 | 100 |
| 91563 | T 25-10 | 25,0 | 10,5 | 7,0 | 18,0 | 34,5 | - | 15,2 | 100 |
| 91564 | T 25-12 | 25,0 | 13,2 | 7,0 | 19,0 | 35,5 | - | 15,0 | 100 |
| 91565 | T 35-6 | 35,0 | 6,4 | 8,5 | 17,0 | 32,5 | - | 19,3 | 100 |
| 91566 | T 35-8 | 35,0 | 8,4 | 8,5 | 17,0 | 35,0 | - | 21,4 | 100 |
| 91567 | T 35-10 | 35,0 | 10,5 | 8,5 | 19,0 | 37,0 | - | 22,9 | 100 |
| 91568 | T 35-12 | 35,0 | 13,2 | 8,5 | 21,0 | 38,0 | - | 22,3 | 100 |
| 91569 | T 50-6 | 50,0 | 6,4 | 10,0 | 20,0 | 37,0 | - | 30,9 | 100 |
| 91570 | T 50-8 | 50,0 | 8,4 | 10,0 | 20,0 | 37,0 | - | 30,1 | 100 |
| 91571 | T 50-10 | 50,0 | 10,5 | 10,0 | 20,0 | 39,0 | - | 31,7 | 100 |
| 91572 | T 50-12 | 50,0 | 13,2 | 10,0 | 23,0 | 40,0 | - | 31,8 | 100 |
| 91573 | T 70-8 | 70,0 | 8,4 | 12,0 | 23,0 | 43,0 | - | 45,5 | 50 |
| 91574 | T 70-10 | 70,0 | 10,5 | 12,0 | 23,0 | 45,0 | - | 48,8 | 50 |
| 91575 | T 70-12 | 70,0 | 13,2 | 12,0 | 23,0 | 46,0 | - | 48,0 | 50 |
| 91577 | T 95-8 | 95,0 | 8,4 | 13,5 | 26,0 | 48,0 | - | 58,4 | 50 |
| 91578 | T 95-10 | 95,0 | 10,5 | 13,5 | 26,0 | 48,0 | - | 57,2 | 50 |
| 91493 | T 95-12 | 95,0 | 13,2 | 13,5 | 26,0 | 49,0 | - | 56,7 | 50 |
| 96317 | T 120-8 | 120,0 | 8,4 | 15,0 | 28,0 | 51,0 | - | 68,9 | 50 |
| 91495 | T 120-10 | 120,0 | 10,5 | 15,0 | 28,0 | 51,0 | - | 67,7 | 50 |
| 91496 | T 120-12 | 120,0 | 13,2 | 15,0 | 28,0 | 51,0 | - | 65,8 | 50 |
| 91498 | T 120-16 | 120,0 | 17,0 | 15,0 | 30,0 | 53,0 | - | 66,6 | 50 |
| 97690 | T 120-20 | 120,0 | 21,0 | 15,0 | 36,0 | 59,0 | - | 77,6 | 50 |
| 97872 | T 150-8 | 150,0 | 8,4 | 16,5 | 31,0 | 58,0 | - | 77,9 | 50 |
| 91499 | T 150-10 | 150,0 | 10,5 | 16,5 | 31,0 | 58,0 | - | 76,8 | 50 |
| 91500 | T 150-12 | 150,0 | 13,2 | 16,5 | 31,0 | 58,0 | - | 75,1 | 50 |
| 91502 | T 150-16 | 150,0 | 17,0 | 16,5 | 31,0 | 58,0 | - | 71,9 | 50 |
| 96318 | T 185-10 | 185,0 | 10,5 | 19,0 | 35,0 | 65,0 | - | 119,8 | 50 |
| 91503 | T 185-12 | 185,0 | 13,2 | 19,0 | 35,0 | 65,0 | - | 117,7 | 50 |
| 91505 | T 185-16 | 185,0 | 17,0 | 19,0 | 35,0 | 65,0 | - | 113,9 | 50 |
| 91506 | T 185-20 | 185,0 | 21,0 | 19,0 | 39,0 | 69,0 | - | 118,0 | 50 |
| 93669 | T 240-10 | 240,0 | 10,5 | 21,0 | 39,0 | 72,0 | - | 173,6 | 50 |
| 96962 | T 240-12 | 240,0 | 13,2 | 21,0 | 39,0 | 72,0 | - | 171,2 | 50 |
| 91508 | T 240-16 | 240,0 | 17,0 | 21,0 | 39,0 | 72,0 | - | 166,7 | 50 |
| 91509 | T 240-20 | 240,0 | 21,0 | 21,0 | 39,0 | 72,0 | - | 160,8 | 50 |
| 96319 | T 300-12 | 300,0 | 13,2 | 23,4 | 43,0 | 77,3 | - | 228,6 | 10 |
| 91510 | T 300-16 | 300,0 | 17,0 | 23,4 | 43,0 | 80,3 | - | 249,3 | 10 |
| 91511 | T 300-20 | 300,0 | 21,0 | 23,4 | 43,0 | 86,3 | - | 253,2 | 10 |
| 91512 | T 400-20 | 400,0 | 21,0 | 26,7 | 49,5 | 90,3 | - | 349,7 | 10 |
