Based on DIN VDE 0250

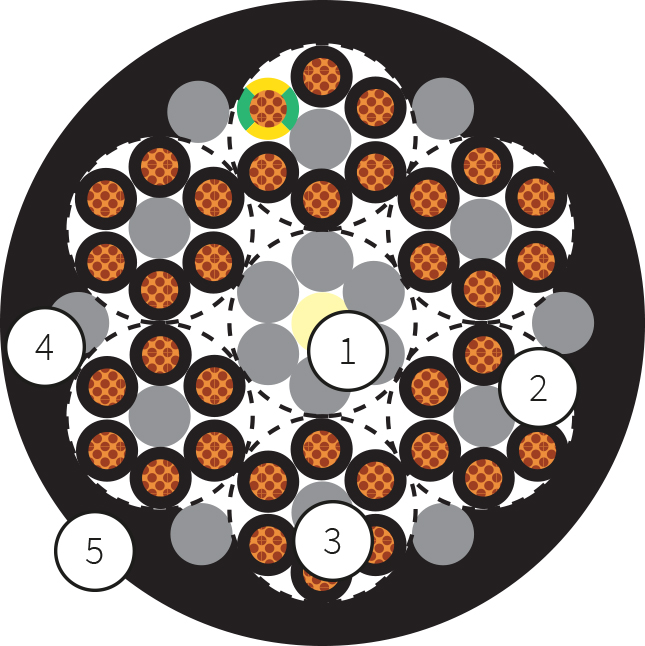

1. CENTRAL SUPPORT ELEMENT
   MATERIAL: lead ball ropes stranded around KEVLAR^® supports
2. PHASE CONDUCTORS
   MATERIAL: bare flexible copper
   CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
3. INSULATION
   MATERIAL: 3GI3 quality rubber compound, according to VDE 0207 Part 20
4. CORE ASSEMBLY
   MATERIAL: 6 cores bundles, with central lead ball rope, stranded around the central support with interstitial lead ball ropes
5. SHEATH
   MATERIAL: halogen free polyurethane
   COLOUR: black

APPLICATION

URSUS^® BASKET LT 0,6/1KV is specifically designed for use on the latest generations of high-speed container cranes with gravity-fed collector baskets, suitable for minimum ambient temperature up to -40°C.
