ARISTONCAVI SPECIFICATIONS

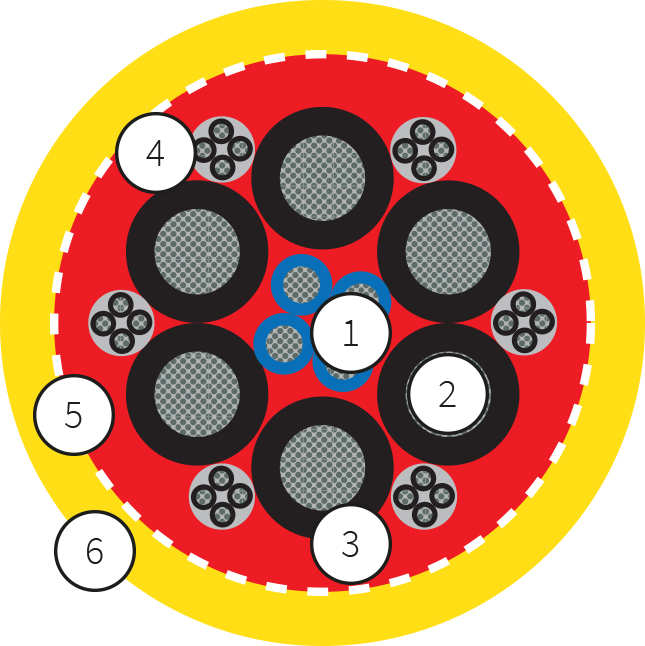

1. PHASE CONDUCTORS
   MATERIAL: tinned copper
   CONSTRUCTION: class 6 VDE 0295 (IEC 60228) with additional central reinforcement textile element
   INSULATION MATERIAL: high modul cross-linked Ethylene-Propylene rubber based compound
2. NEUTRAL CONDUCTOR
   MATERIAL: tinned copper
   CONSTRUCTION: class 6 VDE 0295 (IEC 60228) with additional central reinforcement textile element
   INSULATION MATERIAL: high modul cross-linked Ethylene-Propylene rubber based compound
3. PILOT CONDUCTORS
   MATERIAL: tinned copper
   CONSTRUCTION: class 6 VDE 0295 (IEC 60228)
   INSULATION MATERIAL: polyolefin copolymer compound
4. INNER SHEATH
   MATERIAL: polyurethane thermoplastic compound, halogen free, flame retardant
5. ANTITWISTING ELEMENT
   MATERIAL: polyester braid between inner and outer sheath
6. OUTER SHEATH
   MATERIAL: polyurethane thermoplastic compound, halogen free, flame retardant
   COLOUR: yellow

APPLICATION

Cable designed for power mobile connections, under severe mechanical stresses, for heavy duty conditions, abrasion and crushing. For indoor and outdoor application. Halogen free polyurethane sheath used grants more lightness by retaining the mechanical properties and abrasion resistance. Use of smaller gauge wires, in the conductors designed, in order to avoid loss in electrical resistance due to skin effect caused by the increased in frequency. Against corrosion effect, it is used tinned copper. The symmetric cable designed, permits to optimize the voltage drop. Typical use is for 400Hz power supply systems, as in grounded pits, in cable retrievers, in aircraft hangars, etc. Suitable also as reeling cable due to anti-twist sistem.
