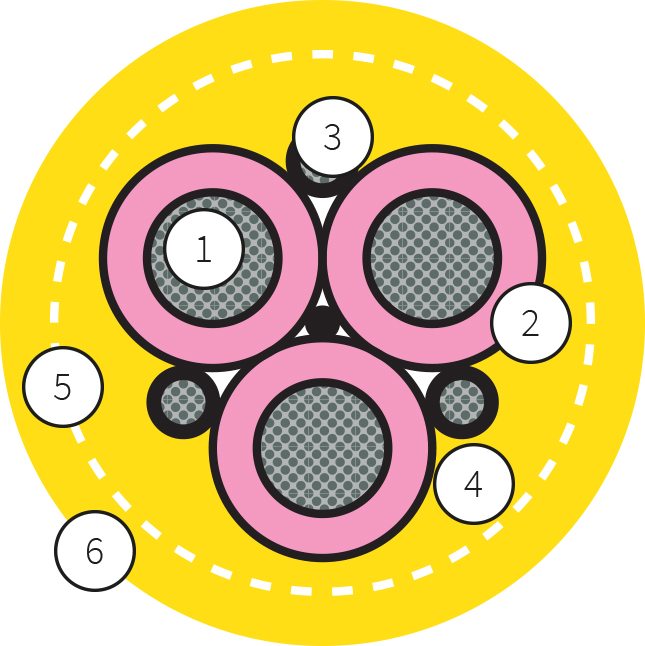

1. PHASE CONDUCTORS
   MATERIAL: tinned copper
   CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
   INSULATION MATERIAL: 3GI3 quality rubber compound, according to VDE 0207 Part 20
   SEMICONDUCTIVE LAYERS: semiconductive tape over the conductor and inner and outer semiconductive rubber layer on the insulation
2. EARTH CONDUCTORS
   MATERIAL: tinned copper
   CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
   COVERING MATERIAL: semiconductive layer
3. INNER SHEATH
   MATERIAL: rubber compound Gm1b/5GM5 quality, according to VDE 0207 Part 21
4. ANTITWISTING ELEMENT
   MATERIAL: polyester braid between inner and outer sheath
5. OUTER SHEATH
   MATERIAL: rubber compound 5GM5 quality, according to VDE 0207 Part 21
   COLOUR: yellow

APPLICATION

Flexible cable for energy supply of heavy mobile equipment such as drag lines, shovels, dredges, drills, under extreme mechanical stresses and abrasion during trailing operation in opencast mine.
