ZBH_903895
Производитель —
Оценка (средняя 5)
Свойства
Large-areas cable sealing
Easy to assemble
Указания
IP 68, subject to the bore diameter in the sealing insert area and cable diameter being identical.
Обозначение
UNI-DICHT-MFD-PA
Beschreibung

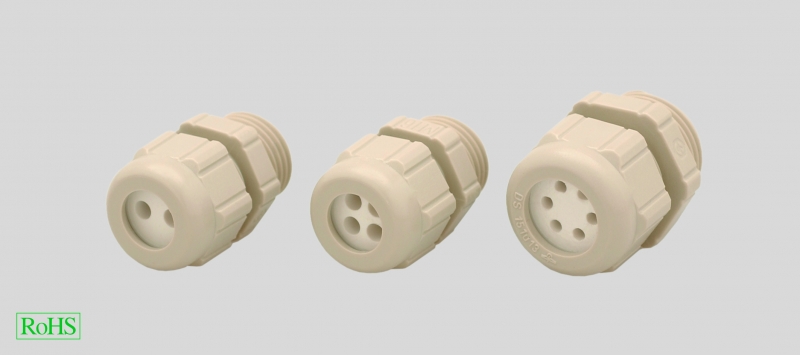

Plastic sealing cable gland with multiple sealing inserts made by TPE.
Области применения
Plant and machine construction
Robot construction
Automation technology
Vehicle...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — ZBH_903895
- Large-areas cable sealing
- Easy to assemble
IP 68, subject to the bore diameter in the sealing insert area and cable diameter being identical.
UNI-DICHT-MFD-PA
Plastic sealing cable gland with multiple sealing inserts made by TPE.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
| Artikel-Nr. hellgrau RAL 7032 | Größe PG | Anzahl Bohrungen x Kabel-Ø mm |
Gewinde- länge mm |
Schlüssel- weite mm |
VPE Stück |
| 903895 | 9 | 2 x 1,2 | 9,0 | 19 | 50 |
| 903896 | 9 | 2 x 3,0 | 9,0 | 19 | 50 |
| 903897 | 9 | 4 x 3,0 | 9,0 | 19 | 50 |
| 903898 | 9 | 2 x 4,0 | 9,0 | 19 | 50 |
| 903899 | 9 | 1 x 5,0 | 9,0 | 19 | 50 |
| 903900 | 11 | 6 x 2,0 | 9,0 | 22 | 50 |
| 903901 | 11 | 2 x 2,3 | 9,0 | 22 | 50 |
| 903902 | 11 | 6 x 2,5 | 9,0 | 22 | 50 |
| 903903 | 11 | 2 x 3,0 | 9,0 | 22 | 50 |
| 903904 | 11 | 3 x 3,0 | 9,0 | 22 | 50 |
| 903905 | 11 | 2 x 5,0 | 9,0 | 22 | 50 |
| 903906 | 13,5 | 3 x 2,0 | 9,0 | 24 | 50 |
| 903907 | 13,5 | 10 x 2,0 | 9,0 | 24 | 50 |
| 903908 | 13,5 | 2 x 3,0 | 9,0 | 24 | 50 |
| 903909 | 13,5 | 3 x 3,0 | 9,0 | 24 | 50 |
| 903910 | 13,5 | 6 x 3,5 | 9,0 | 24 | 50 |
| 903911 | 13,5 | 2 x 5,0 | 9,0 | 24 | 50 |
| 903912 | 13,5 | 2 x 6,0 | 9,0 | 24 | 50 |
| 903913 | 16 | 7 x 2,0 | 9,0 | 27 | 50 |
| 903914 | 16 | 2 x 4,0 | 9,0 | 27 | 50 |
| 903915 | 16 | 4 x 4,0 | 9,0 | 27 | 50 |
| 903916 | 16 | 6 x 4,0 | 9,0 | 27 | 50 |
| 903917 | 16 | 2 x 6,0 | 9,0 | 27 | 50 |
| 903918 | 16 | 3 x 7,0 | 9,0 | 27 | 50 |
| 903919 | 21 | 21 x 2,0 | 11,0 | 33 | 25 |
| 903920 | 21 | 8 x 3,0 | 11,0 | 33 | 25 |
| 903921 | 21 | 6 x 4,0 | 11,0 | 33 | 25 |
| 903922 | 21 | 8 x 4,0 | 11,0 | 33 | 25 |
| 903923 | 21 | 4 x 5,0 | 11,0 | 33 | 25 |
| 903924 | 21 | 4 x 6,0 | 11,0 | 33 | 25 |
| 903925 | 21 | 6 x 6,5 | 11,0 | 33 | 25 |
| 903926 | 21 | 3 x 7,0 | 11,0 | 33 | 25 |
| 903927 | 21 | 4 x 8,0 | 11,0 | 33 | 25 |
| 903928 | 21 | 2 x 9,0 | 11,0 | 33 | 25 |
| 903929 | 29 | 6 x 6,0 | 11,0 | 43 | 10 |
| 903930 | 29 | 10 x 6,0 | 11,0 | 43 | 10 |
| 903931 | 29 | 4 x 6,5 | 11,0 | 43 | 10 |
| 903932 | 29 | 6 x 8,0 | 11,0 | 43 | 10 |
| 903933 | 29 | 4 x 9,0 | 11,0 | 43 | 10 |
| 903934 | 29 | 5 x 9,0 | 11,0 | 43 | 10 |
| 903935 | 29 | 5 x 10,0 | 11,0 | 43 | 10 |
| 903936 | 29 | 2 x 11,0 | 11,0 | 43 | 10 |
| 903937 | 36 | 8 x 9,0 | 14,0 | 53 | 5 |
| 903938 | 36 | 15 x 5,0 | 14,0 | 53 | 5 |
| 903939 | 36 | 3 x 10,0 | 14,0 | 53 | 5 |
| 903940 | 36 | 2 x 15,0 | 14,0 | 53 | 5 |
