UNI-DICHT-MFD-MS, с уплотнителем для нескольких кабелей
ZBH_904164
Производитель —
Оценка (средняя 4)
Свойства
Large-area cable seal
Easy to assemble
Указания
Protection classification IP 68, subject to the bore diameter in the sealing insert area and cable diameter being identical.
Обозначение
UNI-DICHT-MFD-MS
Beschreibung

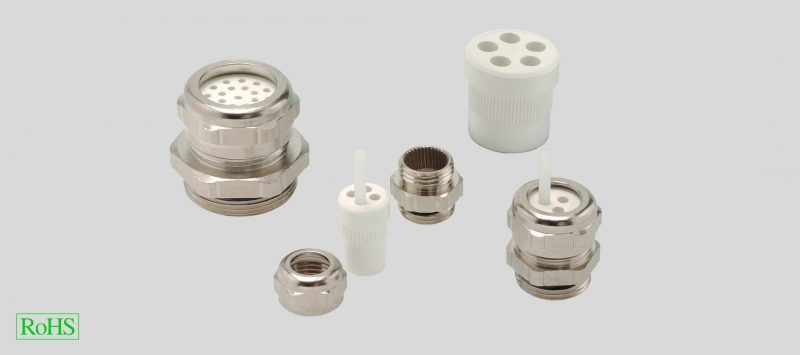

Sealing cable gland made of brass with multiple sealing inserts made by TPE.
Области применения
Plant and machine construction
Robot construction
Automation...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — ZBH_904164
- Large-area cable seal
- Easy to assemble
Protection classification IP 68, subject to the bore diameter in the sealing insert area and cable diameter being identical.
UNI-DICHT-MFD-MS
Sealing cable gland made of brass with multiple sealing inserts made by TPE.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
| Artikel-Nr. | Größe PG | Anzahl Bohrungen x Kabel-Ø mm |
Gewinde- länge mm |
Schlüssel- weite mm |
VPE Stück |
| 904164 | 9 | 2 x 1,2 | 9,0 | 19 | 50 |
| 904165 | 9 | 2 x 3,0 | 9,0 | 19 | 50 |
| 904166 | 9 | 4 x 3,0 | 9,0 | 19 | 50 |
| 904167 | 9 | 2 x 4,0 | 9,0 | 19 | 50 |
| 904168 | 9 | 1 x 5,0 | 9,0 | 19 | 50 |
| 904169 | 11 | 6 x 2,0 | 9,0 | 22 | 50 |
| 904170 | 11 | 2 x 2,3 | 9,0 | 22 | 50 |
| 904171 | 11 | 6 x 2,5 | 9,0 | 22 | 50 |
| 904172 | 11 | 2 x 3,0 | 9,0 | 22 | 50 |
| 904173 | 11 | 3 x 3,0 | 9,0 | 22 | 50 |
| 904174 | 11 | 2 x 5,0 | 9,0 | 22 | 50 |
| 904175 | 13,5 | 3 x 2,0 | 9,0 | 24 | 50 |
| 904176 | 13,5 | 10 x 2,0 | 9,0 | 24 | 50 |
| 904177 | 13,5 | 2 x 3,0 | 9,0 | 24 | 50 |
| 904178 | 13,5 | 3 x 3,0 | 9,0 | 24 | 50 |
| 904179 | 13,5 | 6 x 3,5 | 9,0 | 24 | 50 |
| 904180 | 13,5 | 2 x 5,0 | 9,0 | 24 | 50 |
| 904181 | 13,5 | 2 x 6,0 | 9,0 | 24 | 50 |
| 904182 | 16 | 7 x 2,0 | 9,0 | 27 | 50 |
| 904183 | 16 | 2 x 4,0 | 9,0 | 27 | 50 |
| 904184 | 16 | 4 x 4,0 | 9,0 | 27 | 50 |
| 904185 | 16 | 6 x 4,0 | 9,0 | 27 | 50 |
| 904186 | 16 | 2 x 6,0 | 9,0 | 27 | 50 |
| 904187 | 16 | 3 x 7,0 | 9,0 | 27 | 50 |
| 904188 | 21 | 21 x 2,0 | 11,0 | 33 | 25 |
| 904189 | 21 | 8 x 3,0 | 11,0 | 33 | 25 |
| 904190 | 21 | 6 x 4,0 | 11,0 | 33 | 25 |
| 904191 | 21 | 8 x 4,0 | 11,0 | 33 | 25 |
| 904192 | 21 | 4 x 5,0 | 11,0 | 33 | 25 |
| 904193 | 21 | 4 x 6,0 | 11,0 | 33 | 25 |
| 904194 | 21 | 6 x 6,5 | 11,0 | 33 | 25 |
| 904195 | 21 | 3 x 7,0 | 11,0 | 33 | 25 |
| 904196 | 21 | 4 x 8,0 | 11,0 | 33 | 25 |
| 904197 | 21 | 2 x 9,0 | 11,0 | 33 | 25 |
| 904198 | 29 | 6 x 6,0 | 11,0 | 43 | 10 |
| 904199 | 29 | 10 x 6,0 | 11,0 | 43 | 10 |
| 904200 | 29 | 4 x 6,5 | 11,0 | 43 | 10 |
| 904201 | 29 | 6 x 8,0 | 11,0 | 43 | 10 |
| 904202 | 29 | 4 x 9,0 | 11,0 | 43 | 10 |
| 904203 | 29 | 5 x 9,0 | 11,0 | 43 | 10 |
| 904204 | 29 | 5 x 10,0 | 11,0 | 43 | 10 |
| 904205 | 29 | 2 x 11,0 | 11,0 | 43 | 10 |
| 904206 | 36 | 8 x 9,0 | 14,0 | 53 | 10 |
| 904207 | 36 | 15 x 5,0 | 14,0 | 53 | 10 |
| 904208 | 36 | 3 x 10,0 | 14,0 | 53 | 10 |
| 904209 | 36 | 2 x 15,0 | 14,0 | 53 | 10 |
