KA Presskabelschuh gerade Normalleiter- Aluminium unisoliert, Ringform
ZBH_904695
Производитель —
Оценка (средняя 5)
Указания
Code type indicates the required hexagonal clamping insert.
Обозначение

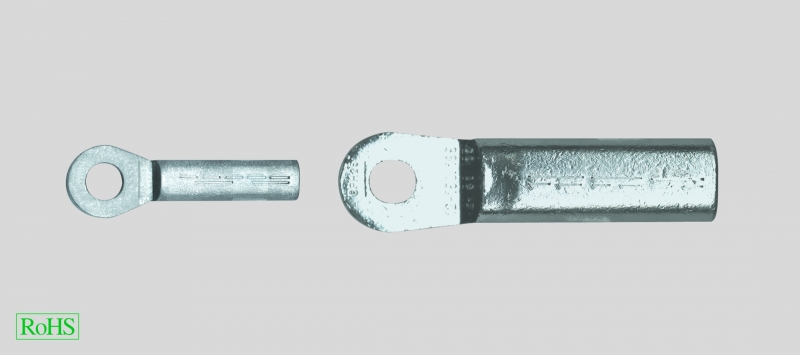

Tubular cable lug KA
Beschreibung
Non-insulated, straight tubular cable lugs in eye type design made by aluminium. High definition version for reliable crimping. Designed for conductor type RM acc. to DIN 48201 and circulary reshaped conductors.
Artikel-Nr.
Typ
Querschnitt RM/SM — SE mm²
a mm
...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — ZBH_904695
Code type indicates the required hexagonal clamping insert.
Tubular cable lug KA
Non-insulated, straight tubular cable lugs in eye type design made by aluminium. High definition version for reliable crimping. Designed for conductor type RM acc. to DIN 48201 and circulary reshaped conductors.
| Artikel-Nr. | Typ | Querschnitt RM/SM — SE mm² | a mm | d mm | b mm | l mm | Kennzahl Typ |
Gewicht kg / 1000 Stück | VPE Stück |
| 904695 | KA 10-6 | 10,0 | 6,5 | 5,0 | 16,0 | 52,0 | 10,0 | 8,6 | 25 |
| 904696 | KA 10-8 | 10,0 | 8,5 | 5,0 | 18,0 | 52,0 | 10,0 | 8,8 | 25 |
| 904697 | KA 16-8 | 16,0 — 25,0 | 8,5 | 5,8 | 18,0 | 52,0 | 12,0 | 13,7 | 10 |
| 904698 | KA 16-10 | 16,0 — 25,0 | 10,5 | 5,8 | 18,0 | 52,0 | 12,0 | 13,9 | 10 |
| 904699 | KA 25-8 | 25,0 — 35,0 | 8,5 | 6,8 | 18,0 | 60,0 | 12,0 | 14,1 | 10 |
| 904700 | KA 25-10 | 25,0 — 35,0 | 10,5 | 6,8 | 18,0 | 60,0 | 12,0 | 14,6 | 10 |
| 904701 | KA 35-10 | 35,0 — 50,0 | 10,5 | 8,0 | 21,0 | 67,0 | 14,0 | 20,8 | 10 |
| 904702 | KA 35-12 | 35,0 — 50,0 | 13,0 | 8,0 | 21,0 | 67,0 | 14,0 | 20,5 | 10 |
| 904703 | KA 50-10 | 50,0 — 70,0 | 10,5 | 9,8 | 25,0 | 72,0 | 16,0 | 26,8 | 10 |
| 904704 | KA 50-12 | 50,0 — 70,0 | 13,0 | 9,8 | 25,0 | 72,0 | 16,0 | 27,3 | 10 |
| 904705 | KA 70-10 | 70,0 — 95,0 | 10,5 | 11,2 | 28,0 | 86,0 | 18,0 | 44,2 | 10 |
| 904706 | KA 70-12 | 70,0 — 95,0 | 13,0 | 11,2 | 28,0 | 86,0 | 18,0 | 42,7 | 10 |
| 904707 | KA 95-10 | 95,0 — 120,0 | 10,5 | 13,2 | 32,0 | 90,0 | 22,0 | 74,0 | 4 |
| 904708 | KA 95-12 | 95,0 — 120,0 | 13,0 | 13,2 | 32,0 | 90,0 | 22,0 | 75,0 | 4 |
| 904709 | KA 95-16 | 95,0 — 120,0 | 17,0 | 13,2 | 34,0 | 90,0 | 22,0 | 73,0 | 4 |
| 904710 | KA 120-12 | 120,0 — 150,0 | 13,0 | 14,7 | 32,0 | 91,0 | 22,0 | 66,8 | 4 |
| 904711 | KA 120-16 | 120,0 — 150,0 | 17,0 | 14,7 | 34,0 | 91,0 | 22,0 | 64,1 | 4 |
| 904712 | KA 150-12 | 150,0 — 185,0 | 13,0 | 16,3 | 35,0 | 103,0 | 25,0 | 96,4 | 4 |
| 904713 | KA 150-16 | 150,0 — 185,0 | 17,0 | 16,3 | 35,0 | 103,0 | 25,0 | 92,4 | 4 |
| 904714 | KA 150-20 | 150,0 — 185,0 | 21,0 | 16,3 | 41,0 | 103,0 | 25,0 | 94,0 | 4 |
| 904715 | KA 185-12 | 185,0 — 240,0 | 13,0 | 18,3 | 40,0 | 106,0 | 28,0 | 126,1 | 1 |
| 904716 | KA 185-16 | 185,0 — 240,0 | 17,0 | 18,3 | 40,0 | 106,0 | 28,0 | 119,2 | 1 |
| 904717 | KA 185-20 | 185,0 — 240,0 | 21,0 | 18,3 | 40,0 | 106,0 | 28,0 | 131,0 | 1 |
| 904718 | KA 240-12 | 240,0 — 300,0 | 13,0 | 21,0 | 45,0 | 116,0 | 32,0 | 183,0 | 1 |
| 904719 | KA 240-16 | 240,0 — 300,0 | 17,0 | 21,0 | 45,0 | 116,0 | 32,0 | 176,0 | 1 |
| 904720 | KA 240-20 | 240,0 — 300,0 | 21,0 | 21,0 | 45,0 | 116,0 | 32,0 | 173,0 | 1 |
| 904721 | KA 300-16 | 300,0 | 17,0 | 23,3 | 49,0 | 124,0 | 34,0 | 175,0 | 1 |
| 904722 | KA 300-20 | 300,0 | 21,0 | 23,3 | 49,0 | 124,0 | 34,0 | 173,0 | 1 |
