ZBH_92094
Производитель —
Оценка (средняя 5)
Свойства
Large-area cable sealing
Easy to assemble
Указания
IP 68, subject to the bore diameter in the sealing insert area and cable diameter being identical.
Обозначение
KVA-MFD-MS
Beschreibung

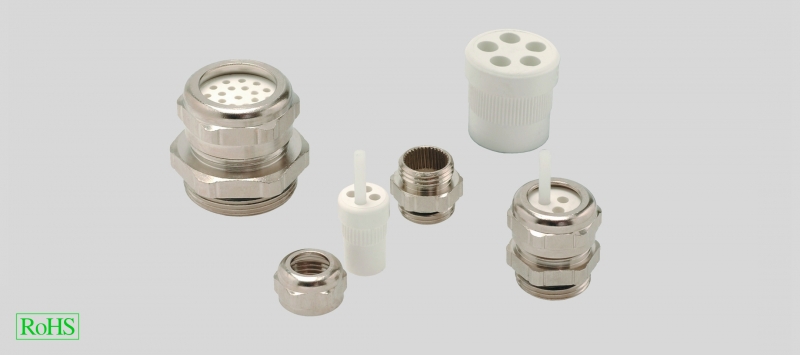

Sealing cable gland made of brass with multiple sealing inserts made by Soft-PVC.
Области применения
Plant and machine construction
Robot construction
Automation technology
Vehicle...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — ZBH_92094
- Large-area cable sealing
- Easy to assemble
IP 68, subject to the bore diameter in the sealing insert area and cable diameter being identical.
KVA-MFD-MS
Sealing cable gland made of brass with multiple sealing inserts made by Soft-PVC.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
| Artikel-Nr. | Größe PG | Anzahl Bohrungen x Kabel-Ø mm |
Gewinde- länge mm |
Schlüssel- weite mm |
VPE Stück |
| 92094 | 9 | 2 x 1,0 | 6,0 | 17 / 20 | 100 |
| 92039 | 9 | 2 x 3,0 | 6,0 | 17 / 20 | 100 |
| 92041 | 9 | 4 x 3,0 | 6,0 | 17 / 20 | 100 |
| 92042 | 9 | 2 x 4,0 | 6,0 | 17 / 20 | 100 |
| 92043 | 9 | 1 x 5,0 | 6,0 | 17 / 20 | 100 |
| 92044 | 11 | 6 x 2,0 | 6,0 | 20 / 22 | 50 |
| 92045 | 11 | 2 x 2,3 | 6,0 | 20 / 22 | 50 |
| 92046 | 11 | 6 x 2,5 | 6,0 | 20 / 22 | 50 |
| 92047 | 11 | 2 x 3,0 | 6,0 | 20 / 22 | 50 |
| 92048 | 11 | 3 x 3,0 | 6,0 | 20 / 22 | 50 |
| 96881 | 11 | 2 x 5,0 | 6,0 | 20 / 22 | 50 |
| 92052 | 13,5 | 3 x 2,0 | 6,5 | 24 / 30 | 50 |
| 92053 | 13,5 | 10 x 2,0 | 6,5 | 24 / 30 | 50 |
| 92054 | 13,5 | 2 x 3,0 | 6,5 | 24 / 30 | 50 |
| 92055 | 13,5 | 3 x 3,0 | 6,5 | 24 / 30 | 50 |
| 92095 | 13,5 | 6 x 3,5 | 6,5 | 24 / 30 | 50 |
| 92096 | 13,5 | 2 x 5,0 | 6,5 | 24 / 30 | 50 |
| 92057 | 13,5 | 2 x 6,0 | 6,5 | 24 / 30 | 50 |
| 92058 | 16 | 7 x 2,0 | 6,5 | 24 / 30 | 50 |
| 92097 | 16 | 2 x 4,0 | 6,5 | 24 / 30 | 50 |
| 92060 | 16 | 4 x 4,0 | 6,5 | 24 / 30 | 50 |
| 92061 | 16 | 6 x 4,0 | 6,5 | 24 / 30 | 50 |
| 92062 | 16 | 2 x 6,0 | 6,5 | 24 / 30 | 50 |
| 96434 | 16 | 3 x 7,0 | 6,5 | 24 / 30 | 50 |
| 92064 | 21 | 21 x 2,0 | 7,0 | 30 / 40 | 25 |
| 92065 | 21 | 8 x 3,0 | 7,0 | 30 / 40 | 25 |
| 92066 | 21 | 6 x 4,0 | 7,0 | 30 / 40 | 25 |
| 92067 | 21 | 8 x 4,0 | 7,0 | 30 / 40 | 25 |
| 96956 | 21 | 4 x 5,0 | 7,0 | 30 / 40 | 50 |
| 92069 | 21 | 4 x 6,0 | 7,0 | 30 / 40 | 25 |
| 92068 | 21 | 6 x 6,5 | 7,0 | 30 / 40 | 25 |
| 92070 | 21 | 3 x 7,0 | 7,0 | 30 / 40 | 25 |
| 92072 | 21 | 4 x 8,0 | 7,0 | 30 / 40 | 25 |
| 92098 | 21 | 2 x 9,0 | 7,0 | 30 / 40 | 25 |
| 96430 | 29 | 6 x 6,0 | 8,0 | 40 | 25 |
| 97327 | 29 | 10 x 6,0 | 8,0 | 40 | 25 |
| 92099 | 29 | 4 x 6,5 | 8,0 | 40 | 10 |
| 96710 | 29 | 6 x 8,0 | 8,0 | 40 | 10 |
| 92074 | 29 | 4 x 9,0 | 8,0 | 40 | 10 |
| 96564 | 29 | 5 x 9,0 | 8,0 | 40 | 10 |
| 92075 | 29 | 5 x 10,0 | 8,0 | 40 | 10 |
| 92076 | 29 | 2 x 11,0 | 8,0 | 40 | 10 |
| 92077 | 36 | 15 x 5,0 | 8,5 | 50 | 10 |
| 96336 | 36 | 8 x 9,0 | 8,5 | 50 | 25 |
| 92079 | 36 | 3 x 10,0 | 8,5 | 50 | 10 |
| 96397 | 36 | 2 x 15,0 | 8,5 | 50 | 25 |
